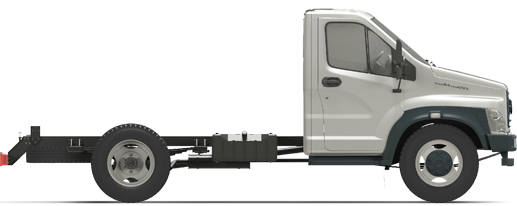

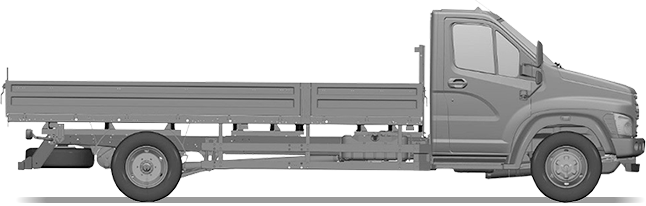

GAZON NEXT DROP-SIDE TRUCK

Number of seats

3

3

7

3

Axle configuration

4×2

4×2

4×2

4×2

Drive type

Rear

Rear

Rear

Rear

GVW, kg

8,700

8,700

8,700

10,000

Curb weight, kg

3,730

4,130

4,150

4,680

Wheelbase, mm

3,770

4,515

4,515

5,150

Wheel tread:

Front, mm

Rear (between the centers of double tires), mm

1,740

1,690

1,740

1,690

1,740

1,690

1,980

1,690

Clearance (below the rear axle housing @ GVW), mm

253/188

253/188

253/188

195

Minimum turning radius by the outside front wheel tread, m

8.2

9.6

9.6

9.1

Maximum speed on a horizontal smooth highway, km/h

105

105

105

105

Overhang angles (under load)

Front, degrees

Rear, degrees

30

15

30

11

30

15

24

14

Maximum uphill gradient using the main fuel type under full load, %

260 (26)

260 (26)

260 (26)

250 (25)

Loading height, mm

1,200/1,135

1,300/1,235

1,300/1,235

1,060

Internal body dimensions, mm

Length

Width

Height

3,529

2,202

432

5,035

2,202

432

3,529

2,202

432

5,035

2,470

432

Gearbox

5-speed, manual

5-speed, manual

5-speed, manual

5-speed, manual
