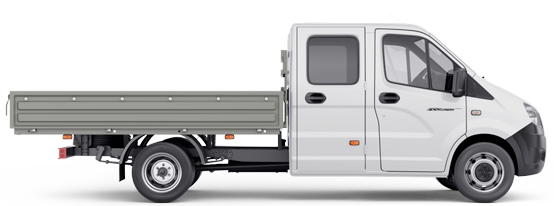

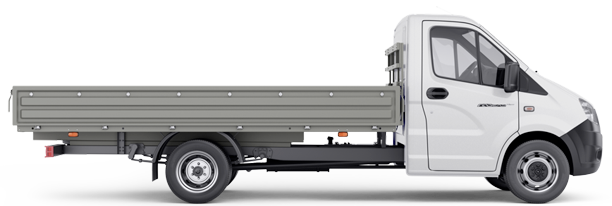

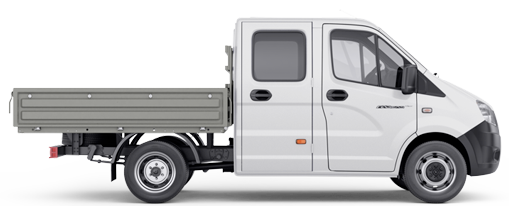

GAZELLE NEXT DROP-SIDE TRUCK

Full specifications

3 seats Standard 2+1

2 513^mm

2 140^mm

2 068^mm

5 630^mm

3 145^mm

3 seats Long 2+1

2 513^mm

2 140^mm

2 068^mm

6 709^mm

3 745^mm

3 seats Extra Long 2+1

2 513^mm

2 175^mm

2 068^mm

6 709^mm

3 745^mm

7 seats Standard 6+1

2 513^mm

2 140^mm

2 068^mm

5 590^mm

3 145^mm

7 seats Long 6+1

2 513^mm

2 140^mm

2 068^mm

6 709^mm

3 745^mm

7 seats Extra Long 6+1

2 513^mm

2 140^mm

2 068^mm

6 709^mm

3 745^mm

3 seats
Standard
2+1

3 seats Standard 2+1

3 seats
Standard
2+1

3 seats Long 2+1

3 seats
Long
2+1

3 seats Extra Long 2+1

3 seats
Extra Long
2+1

7 seats Standard 6+1

7 seats
Standard
6+1

7 seats Long 6+1

7 seats
Long
6+1

7 seats Extra Long 6+1

7 seats
Extra Long
6+1

Models

PARAMETERS	Standard Single cab/ double cab	Long Single cab/ double cab	Extra Long Single cab/ double cab
Number of seats	3 / 7	3 / 7	3 / 7
Wheel arrangement	4×2	4×2	4×2
Driving axle	Rear	Rear	Rear
GVW, kg	3500	3500	4600
Wheelbase, mm	3145	3745	3745
Clearance, mm	170	170	170
Minimum turning radius, m	5,7	6,5	6,5
Maximum speed, km/h	130	130	130
Maximum driving gradient of a fully loaded vehicle, %	26	26	26
Loading height, mm	950	950	985
Internal cargo bed dimensions, mm Length Width Height	3298 / 2548 2160 400	4380 / 3298 2160 400	4380 / 3298 2160 400
Gearbox type, number of speeds	Manual, 5-speed	Manual, 5-speed	Manual, 5-speed
Fuel tank capacity, l	80	80	80
