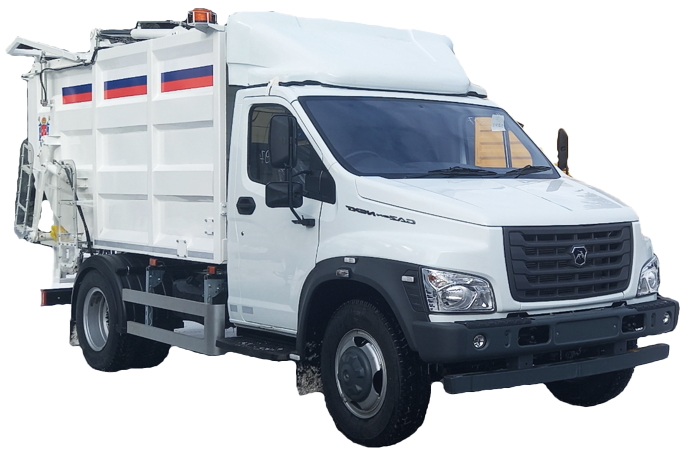

SAZ-3901-19
Rear loader garbage truck with ejection plate
Base 4515 mm
3
Description
of the base chassis
of the base chassis
Base, mm
4515
Passenger capacity
3
Drive
4x2
Clearance, mm
207
GVW
10000
Description
of the add-in
of the add-in
Cabin
Full-metal, three-seater
Curb weight, kg
7,100
Load capacity, kg
2,900
Garbage collecting compactor
Welded steel structure made of thick steel plates with the walls reinforced with stiffening ribs Garbage unloading - backwards, by ejecting plate. Garbage re-loading to stationary press compactors is possible
Compactor equipment drive
hydraulic, from PTO
Compactor capacity, m³
11.0
POT box
Mechanical, electrically controlled from the cab
Compactor control panel
Using hydraulic distributer levers
Capacity of the manipulator for container loading, kg
800
Volume of compatible containers, m³
0.06-1.3
Compaction rate, units
2-3
Description and dimensions
of the specification
of the specification
Hydraulically actuated working mechanisms controlled from the control panel on the truck body.
To load garbage, wheeled garbage containers are rolled up to the tipper gripper, which is lowered to the grip position, grabs the container, lifts and tilts it into the body. After the container is emptied, compactor plate rotates, pushing and compacting the garbage inside the truck body.
Unloading is done by the ejection plate without tipping the hopper. Configuration of the body enables the waste to be discharged at a landfill as well as its reloading to a larger-capacity garbage truck.
