Description
of the base chassis
of the base chassis
Base, mm
3310
Passenger capacity
3
Drive
4x2
Clearance, mm
177
GVW
6700
Description
of the add-in
of the add-in
Cabin
Full-metal, three-seater
Curb weight, kg
4,450
Load capacity, kg
2,250
Garbage collecting compactor
Metal welded structure of thick steel plate, walls additionally reinforced with stiffeners. Mounted on a separate sub-frame. Garbage unloading - backwards. Dump angle - 90°
Compactor equipment drive
Hydraulic, from POT box
Compactor capacity, m³
6.0
POT box
Mechanical, electrically controlled from the cab
Compactor control panel
Panel control for all functions, duplicating wired remote control for compactor unloading
Capacity of the manipulator for container loading, kg
600

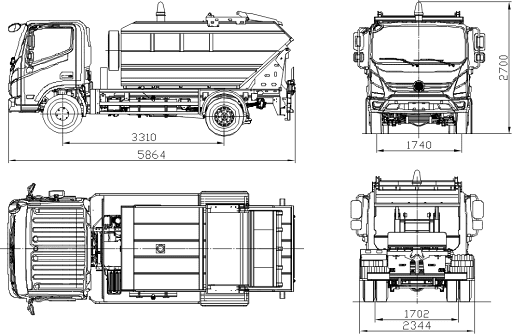

Description and dimensions
of the specification
of the specification
A compact body and small chassis dimensions increase the vehicle's maneuverability in tight spaces and make it easier to pass through narrow yards.
The garbage compactor holds up to 2,250 kg. The compactor is made of thick steel plate, walls additionally reinforced with stiffeners. The superstructure is equipped with an LED work area light as well as a flashing light.
The main purpose of this model is collecting garbage in confined megacity conditions with subsequent transfer to the large-sized garbage trucks or recycling facilities.
It’s perfect for separate garbage collection.
