Description
of the base chassis
of the base chassis
Base, mm
4515
Passenger capacity
3
Drive
4x2
Clearance, mm
207
GVW
10000
Description
of the add-in
of the add-in
Curb weight, kg
5300
Load capacity, kg
3960/4700 (with put-on sides)
Body capacity, m³
5.6 (11.2/13.2 – with put-on sides/and extensions)
Basic chassis
GAZ-С41R33 (ЯМЗ)
Min. turning radius, m
8.5/7.9* - for trucks with tires 245/70R19.5
Platform tilting angle (rear)
39/45
Dimensions along main sides
4000 / 2280 / 620
Dimensions along put-on sides
4000 / 2280 / 1230
Platform
Metal welded, with opening lateral and rear sides, optionally with put-on sides and additional extensions.
Platform internal dimensions along the put-on sides with additional extensions
4000 / 2280 / 1450

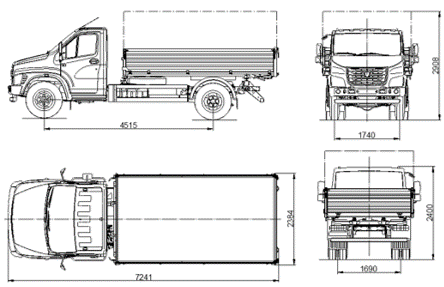

Description and dimensions
of the specification
of the specification
The vehicles are designed for transportation on public roads, including unpaved roads, and off-road, if the ground conditions provide for normal cross-country movement of the dump truck, and for mechanized unloading of various agricultural goods, and fine bulk industrial and construction materials.
Platform tilting mechanism – hydraulic, driven from the vehicle power takeoff.
Platform - metal, with three-way unloading, welded, straight-sided with hinged rear and lateral sides.
* Vehicle carrying capacity is determined as the difference between the allowed gross vehicle weight and curb weight of the vehicle including the passengers' weight.
