6 seats

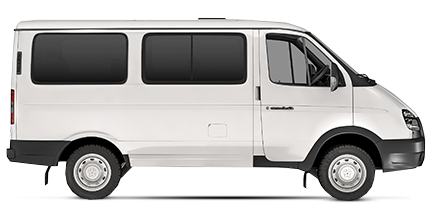

Low Roof
6+1
|
PARAMETERS |
|
vehicle with a low roof |
|

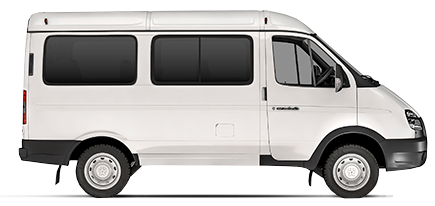

vehicle with a medium roof |
|---|---|---|---|---|
|
Number of seats |
6+1 |
10+1 |
6+1 |
10+1 |
| Passenger capacity | 6 | 10 | 6 | 10 |
|
Wheelbase |
4x2/4×4 |
4x2/4×4 |
4x2/4×4 |
4x2/4×4 |
|
Drive type |
Rear |
Rear |
Rear |
Rear |
|
GVW, kg |
2595/2855 3055* |
2900/3085 3235* |
2675/2880 3030* |
2915/3110 3250* |
|
Curb weight, kg |
2125/2315 2465* |
2085/2255 2405* |
2140/2330 2480*
|
2100/2270 2420* |
|
Distribution of road load of GVW vehicle through tires, kg Front wheels Rear wheels |
1275/1365 1380/1490 |
1340/1485 1560/1600 |
1285/1370 1390/1510 |
1345/1480 1570/1620 |
|
Wheelbase, mm |
2760 |
2760 |
2760 |
2760 |
|
Wheel tread Front, mm Rear, mm (between the centers of double tires) |
1700/1720 1700 |
1700/1720 1700 |
1700/1720 1700 |
1700/1720 1700 |
|
Clearance (below the rear axle housing @ GVW), mm |
205 |
205 |
205 |
205 |
|
Minimum turning radius by the outside front wheel tread, m |
5.5/6 |
5.5/6 |
5,5/6 |
5.5/6 |
|
Maximum speed on a horizontal smooth highway, km/h |
130/120 115* |
130/120 115* |
130/120 115* |
130/120 115* |
|
Overhang angles (under load) Front, degrees Rear, degrees |
22/29 21/27 |
22/29 21/27 |
22/29 21/27 |
22/29 21/27 |
|
Maximum uphill gradient using the main fuel type under full load, % |
29/30 |
29/30 |
29/30 |
29/30 |
|
Gearbox |
5МКPP |
5МКPP |
5МКPP |
5МКPP |
|
Fuel tank capacity, l |
80 |
80 |
80 |
80 |
*ISF2.8s4129P
