GAZELLE NN VAN

Full specifications

2 536^mm

2 735^mm

2 068^mm

5 632^mm

3 145^mm

2 536^mm

2 735^mm

2 068^mm

6 232^mm

3 745^mm

2 536^mm

2 735^mm

2 068^mm

5 632^mm

3 145^mm

2 536^mm

2 735^mm

2 068^mm

6 232^mm

3 745^mm

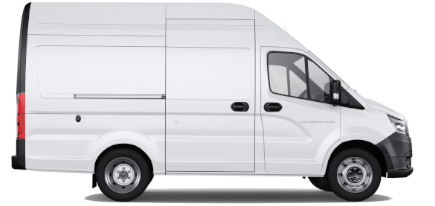

3 seats
Standard
2+1

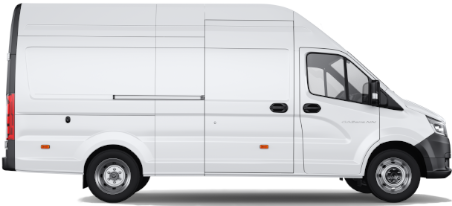

3 seats
Long
2+1

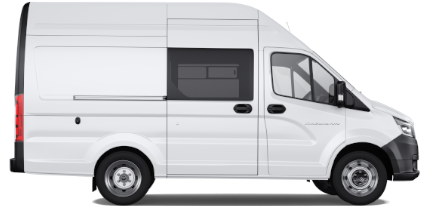

7 seats
Standard
6+1

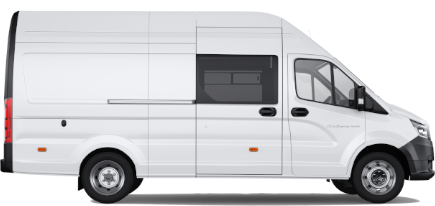

7 seats
Long
6+1

Models

PARAMETERS	2.0 single cab/dual cab*	2.0 single cab/dual cab**	2.0 single cab/dual cab***	2.0 single cab/dual cab*	2.0 single cab/dual cab**	2.0 single cab/dual cab***
Standard base	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats
Engine
Engine model	G51, 4 in-line	G51, 4 in-line	G51, 4 in-line	A275, 4 in-line	G51, 4 in-line	FD25, 4 in-line
Engine type	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Engine V	2,49l	2,49l	2,49l	2,49l	2,49l	2,49l
Engine power	149 h.p.	149 h.p.	149 h.p.	149 h.p.	149 h.p.	149 h.p.
"Max power (kW/hp) at rpm", Max torque at rpm, Nm	110 (149,6) @3000	110 (149,6) @3000	110 (149,6) @3000	78,5 (106,8) @4000	110 (149,6) @3000	116 (158) @3000
Max torque at rpm, Nm	330/420	330/420	330/420	330	330/420	420
Number and arragement of cylinders	-	-	-	-	-	-
Ecological class	Euro-3/ Euro-5	Euro-3/ Euro-5	Euro-3/ Euro-5	Euro-5	Euro-3/ Euro-5	Euro VI E
Common characteristics
Transmission	5MT/6MT	5MT/6MT	5MT/6MT	5MT	5MT/6MT	6MT
Front suspension	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar	Two independent wishbones with cylindrical springs, with two telescopic shock absorbers with a anti-roll bar	Two independent wishbones with cylindrical springs, with two telescopic shock absorbers with a anti-roll bar	Two independent wishbones with cylindrical springs, with two telescopic shock absorbers with a anti-roll bar	Two independent wishbones with cylindrical springs, with two telescopic shock absorbers with a anti-roll bar	Two independent wishbones with cylindrical springs, with two telescopic shock absorbers with a anti-roll bar
Rear suspension	Depended, with longitudinal semi-elliptic leaf springs with two telescopic shock absorbers, with stabilizer bar (option)	Depended, with longitudinal semi-elliptic leaf springs with two telescopic shock absorbers, with stabilizer bar (option)	Depended, with longitudinal semi-elliptic leaf springs with two telescopic shock absorbers, with stabilizer bar (option)	Depended, with longitudinal semi-elliptic leaf springs with two telescopic shock absorbers, with stabilizer bar (option)	Depended, with longitudinal semi-elliptic leaf springs with two telescopic shock absorbers, with stabilizer bar (option)	Depended, with longitudinal semi-elliptic leaf springs with two telescopic shock absorbers, with stabilizer bar (option)
Steering gear	With steering booster	With steering booster	With steering booster	With steering booster	With steering booster	With steering booster
Break system	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster
Parking brake system	Mechanical, with cable drive to braking mechanisms of rear wheels	Mechanical, with cable drive to braking mechanisms of rear wheels	Mechanical, with cable drive to braking mechanisms of rear wheels	Mechanical, with cable drive to braking mechanisms of rear wheels	Mechanical, with cable drive to braking mechanisms of rear wheels	Mechanical, with cable drive to braking mechanisms of rear wheels
Front wheel brakes	Disc	Disc	Disc	Disc	Disc	Disc
Rear wheel brakes	Disc	Disc	Disc	Disc	Disc	Disc
Cabin & Cargo van
Passenger capacity	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver
Doors of cargo van	2 swing doors + 1 sliding door	2 swing doors + 1 sliding door	2 swing doors + 1 sliding door	2 swing doors + 1 sliding door	2 swing doors + 1 sliding door	2 swing doors + 1 sliding door
Airbags in base	Driver airbag	Driver airbag	Driver airbag	Driver airbag	Driver airbag	Driver airbag
Dimensions
Length, mm	5110	5630	5632	5632	6232	6232
Widht, mm	2068	2068	2068	2068	2068	2068
Height, mm	2445	2435	2735	2735	2735	2735
Wheel base, mm	3005	3145	3145	3145	3745	3745
Loading height	730	730	730	730	730	730
Dimensions of cargo compartment length/width/height, mm	3031/1860/1927 2400/1860/1927	3631/1860/1927 3000/1860/1927	3000/1860/1927 3000/1860/1927	3031/1860/1927 2400/1860/1927	3631/1860/1927 3000/1860/1927	3000/1860/1927 3000/1860/1927
Volume, m3	7.8 / 5.1	9.3 / 5.3	11.5 / 7.5	11.5 / 7.5	13.5 / 9.5	13.5 / 9.5
Weight
Gross weight, kg	3500	3500	3500	3500	3500/4600	3500
Curb weight, kg	2263 / 2501	2577 / 2680	2490 / 2605	2360 / 2475	2525 / 2640 2615 / 2740	2660 / 2820
Running characteristics
Wheel formula	4x2 / 4x4	4x2	4x2	4x2	4x2	4x2
Angle of approach/departure, degree	25 / 22	24 / 14	24 / 14	24 / 14	24 / 14	24 / 14
Maximum driving gradient, %	26	26	26	26	26	26
Road clearance (under rear axle at GVW), mm	180	180	170	170	170	170
Minimum turning radius on outer front wheel track, m	5.1	5.7	5.7	5.7	6.5	6.5
Maximum speed, km/h	130	130	130	130	130	130
Fuel consuption
with constant speed of 60 km/h	8.5	8.5	8.5	8.5	8.5	8.5
with constant speed of 80 km/h	10.3	10.3	10.3	10.3	10.3	10.3
Fuel bank capacity, l	80	80	80	80	80	80
Wheels
Tires	185/75R16C	185/75R16C	185/75R16C	185/75R16C	185/75R16C	185/75R16C
Rims	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2

* A31R22 2.0 Standard Single cab / A32R22 2.0 Standart Double cab

** A31R32 2.0 Long Single cab / A32R32 2.0 Long Double cab

*** A31R32 2.8 Long Single cab / A32R32 2.8 Long Double cab
