GAZELLE NN DROP-SIDE TRUCK

Full specifications

2536^mm

2140^mm

2068^mm

5590^mm

3145^mm

2 536^mm

2 140^mm

2 068^mm

6 670^mm

3 745^mm

2 536^mm

2 175^mm

2068^mm

5 590^mm

3 145^mm

2 536^mm

2 175^mm

2 068^mm

6 335^mm

3 745^mm

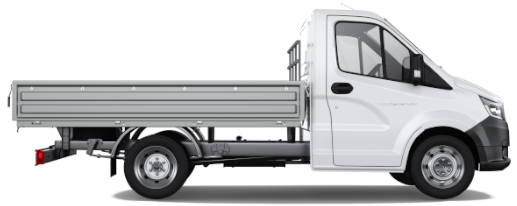

3 seats
Standard
2+1

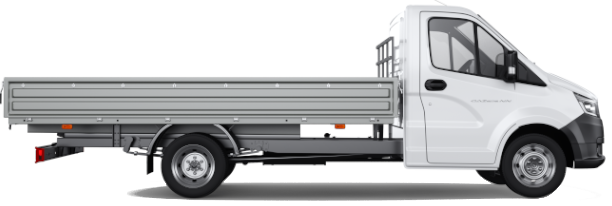

3 seats
Long
2+1

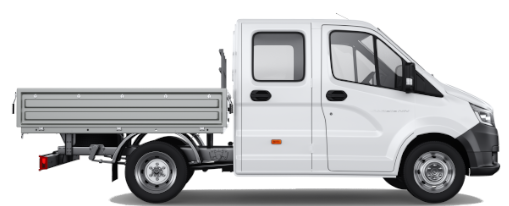

7 seats
Standard
6+1

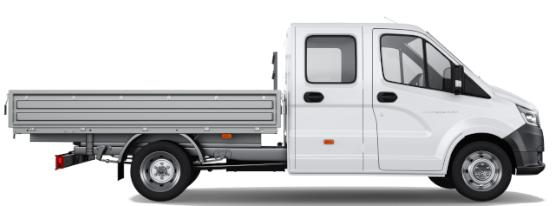

7 seats
Long
6+1

Models

PARAMETERS	2.5 Short (Diesel) single cab/dual cab*	2.5 Standard (Diesel) single cab/dual cab**	2.5 Standard (Gasoline) single cab/dual cab***	2.5 Long (Diesel) single cab/dual cab*	2.5 Long (Gasoline) single cab/dual cab**	2.5 Long (Diesel) single cab/dual cab***
Standard base	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats	3 seats / 7 seats
Engine
Engine model	G51, 4 in-line	G51, 4 in-line	A275/A305, 4 in-line	G51, 4 in-line	A275/A305, 4 in-line	FD25, 4 in-line
Maximum power, kW (h.p.) at crankshaft speed, rpm	110 (149,6) @3000	110 (149,6) @3000	78,5 (106,8) @4000 89,7 (122) @4000	110 (149,6) @3000	78,5 (106,8) @4000 89,7 (122) @4000	116 (158) @3000
Maximum torque, Nm at crancshaft speed, rpm	330/420	330/420	220/ 250	330/420	220/ 250	420
Ecological class	Euro-3/ Euro-5	Euro-3/ Euro-5	Euro-5	Euro-3/ Euro-5	Euro-5	Euro VI E
Common characteristics
Transmission	5MT/6MT	5MT/6MT	5MT	5MT/6MT	5MT	6MT
Front suspension	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar	Independent, coil spring type, two wishbone, two telescopic shock absorbers, anti-roll bar
Rear suspension	Dependent, longwise semielliptic springs, two telescopic shock absorbers, anti-roll bar (option)	Dependent, longwise semielliptic springs, two telescopic shock absorbers, anti-roll bar (option)	Dependent, longwise semielliptic springs, two telescopic shock absorbers, anti-roll bar (option)	Dependent, longwise semielliptic springs, two telescopic shock absorbers, anti-roll bar (option)	Dependent, longwise semielliptic springs, two telescopic shock absorbers, anti-roll bar (option)	Dependent, longwise semielliptic springs, two telescopic shock absorbers, anti-roll bar (option)
Steering gear	With steering booster	With steering booster	With steering booster	With steering booster	With steering booster	With steering booster
Break system	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster	Dual-circuit hydralic drive with ABS and vacuum booster
Parking brake system	Mechanical, with rope drive to braking mechanisms of rear wheels	Mechanical, with rope drive to braking mechanisms of rear wheels	Mechanical, with rope drive to braking mechanisms of rear wheels	Mechanical, with rope drive to braking mechanisms of rear wheels	Mechanical, with rope drive to braking mechanisms of rear wheels	Mechanical, with rope drive to braking mechanisms of rear wheels
Front wheel brakes	Disc	Disc	Disc	Disc	Disc	Disc
Rear wheel brakes	Disc	Disc	Disc	Disc	Disc	Disc
Cabin
Passenger capacity	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver	2 passengers + 1 driver / 6 passengers + 1 driver
Airbags in base	Driver airbag	Driver airbag	Driver airbag	Driver airbag	Driver airbag	Driver airbag
Dimensions
Length, mm	4983	5590	5590	6735	6735	6735
Chassis, mm	5255 underrun bar with standard brackets (5535 - underrun bar with long brackets)	6250 underrun bar with standard brackets (6630 - underrun bar with long brackets) / 5855 underrun bar with standard brackets (6315 - underrun bar with long brackets)	6250 underrun bar with standard brackets (6630 - underrun bar with long brackets) / 5855 underrun bar with standard brackets (6315 -underrun bar with Long brackets)
Steal cargo bed, mm	5655	6735/6400	6735/6400
Aluminium cargo bed, mm	5590	6670/6335	6670/6335
Widht, mm	2068	2068	2068	2068	2068	2068
Height, mm	2183 (2325 for 4x4)	2140	2140	2140	2140	2140
Wheel base, mm	3005	3145	3145	3745	3745	3745
Loading height	990	810	810	975	975	975
Payload capacity, kg	1387	1341	1515	1400/2250	1400	1400
Dimensions of cargo compartment length/width/height, mm
Steal cargo bed (length/width/height, mm)	3090/1978/400 2339/1978/400	4168/2078/400 3090/2078/400	4168/2078/400 3090/1978/400
Aluminium cargo bed (length/width/height, mm)	3113/2105/388 2362/1999/388	4190/1999/388 3113/2105/388	4190/1999/388 3113/2105/388
Weight
Gross weight, kg	3500	3500	3500	3500/4600	3500	3500
Curb	2113	2207	1985	2100/2350	2100	2100
Running characteristics
Wheel formula	4x2/ 4x4	4x2	4x2	4x2	4x2	4x2
Angle of approach/departure, degree	24/20	22/21	22/21	22/14	22/14	22/14
Maximum driving gradient, %	26	26	26	26	26	26
Road clearance (under rear axle at GVW), mm	180 (205 for 4x4)	180	180	170	170	170
Minimum turning radius on outer front wheel track, m	5.4	5.7	5.7	6.5	6.5	6.5
Maximum speed, km/h	130	130	130	130	130	130
Fuel consuption
at 60km/h	6.1	8.0	9.8/ 11.4 (A305)	8.0	9.8/ 11.4 (A305)	7.5
at 80km/h	7.9	10.3	12.1/ 13.6 (A305)	10.3	12.1/ 13.6 (A305)	9.5
Fuel bank capacity, l	80	80	80	80	80	80
Wheels
Tires	185/75R16C	185/75R16C	185/75R16C	185/75R16C	185/75R16C	185/75R16C
Rims	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2	5.5Jx16H2

* A21R22 2.0 Standard Single cab / A22R22 2.0 Standart Double cab

** A21R32 2.0 Long Single cab / A22R32 2.0 Long Double cab

*** A21R32 2.8 Long Single cab / A22R32 2.8 Long Double cab
